پارت نامبر: PMC71-ABC1P6RDAAA

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

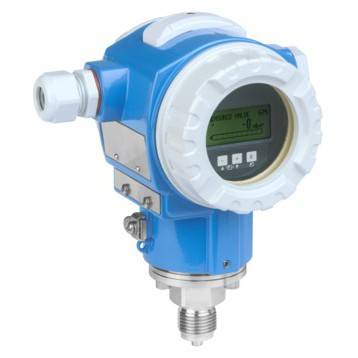

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.

مشخصات:

• A Approval: Non-hazardous area
• B Output; Operating: 4-20mA HART; inside + LCD
• C Housing; Cover Sealing; Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
• 1P Sensor Range; Sensor Overload Limit: 10bar/1MPa/150psi gauge; 40bar/4MPa/600psi
• 6 Calibration; Unit: Sensor range; psi
• RD Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
• A Seal: FKM Viton
• A Additional Option 1: Not selected
• A Additional Option 2: Not selected

ویژگی‌ها:

• Best fit for vacuum applications and applications with corrosive and abrasive media
• Process safety through membrane breakage detection
• Overload-resistant high purity ceramic sensor (99.9% Al2O3)
• HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
• Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
• Cost savings with modular concept for easy replacement of sensor, display or electronics

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Cerabar S PMC71 PMP71 PMP75_Process pressure measurement)
(حجم فایل: 3.2 مگابایت)
