پارت نامبر: TMT142-C21331BKA1

وزن تقریبی حمل: 3 کیلوگرم

معرفی:

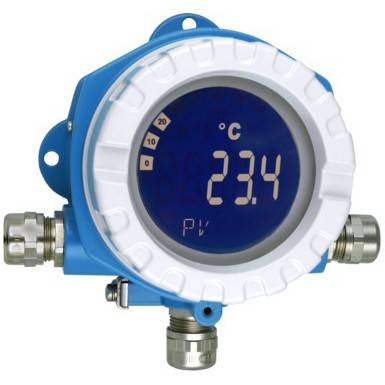

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from RTD sensors and thermocouples, but also resistance and voltage signals using HART® communication. It visualizes the signals on its own backlit display. A rugged field housing allows a direct connection in the process areas. Moreover, a swift and easy operation and maintenance can be realized by PC using operating software.

مشخصات:

• C Approval: FM IS, NI I/1+2/A-D
• 2 Housing: Alu + display
• 1 Cable Entry: 3x thread NPT1/2
• 3 Mounting Bracket: Pipe 2", 316L
• 3 Configuration Connection: RTD 3-wire
• 1 Configuration Sensor Type: Pt100, -200...850oC, min. span 10K To IEC 751 (a = 0,00385)
• B Configuration: Measuring range
• K Additional Option: 60Hz line voltage filter
• A Sensor Input: 1x input
• 1 Version: Standard

ویژگی‌ها:

• Illuminated display, rotatable
• Operation, visualisation and maintenance with PC, e.g. using FieldCare operating software
• Sensor monitoring: Failure conditioning, corrosion detection to NAMUR NE 89 and in event of sensor break or sensor short-circuit, NAMUR NE 43 compliant
• Optional stainless steel housing for EEx d applications
• Approvals: ATEX (EEx ia, EEx d and dust ignition-proof), FM and CSA (IS, NI, XP and DIP)
• Galvanic isolation
• Min./max. process value recorded

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_iTEMP HART TMT142_Temperature transmitter for resistance thermometers)
