پارت نامبر: PMP71-TBC1S61RDAMA

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

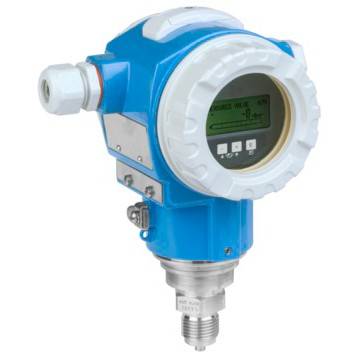

The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.

مشخصات:

• T Approval: FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2
• B Output; Operating: 4-20mA HART; inside + LCD
• C Housing; Cover Sealing; Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
• 1S Sensor Range; Sensor Overload Limit: 40bar/4MPa/600psi gauge; 160bar/16MPa/2400psi
• 6 Calibration; Unit: Sensor range; psi
• 1 Membrane Material: 316L
• RD Process Connection: Thread ANSI MNPT1/2 hole, 316L
• A Fill Fluid: Silicone oil
• M Additional Option 1: Overvoltage protection
• A Additional Option 2: Not selected

ویژگی‌ها:

• Best accuracy, reproducibility and long-term stability

• Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508

• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

• HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

• Overload-resistant and function-monitored from the measuring cell to the electronics

• Cost savings with modular concept for easy replacement of sensor, display or electronics

• Seamless and independent system integration (HART/PA/FF)

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Cerabar S PMC71 PMP71 PMP75_Process pressure measurement)
(حجم فایل: 3.2 مگابایت)
