پارت نامبر: PMP51-FB22ID1WGFRKJA1

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

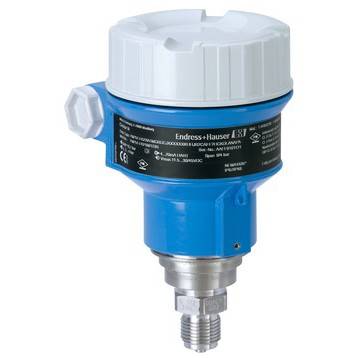

The Cerabar PMP51 digital pressure transmitter with metal membrane is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. PMP51 is designed for high pressure applications up to 400bar. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

مشخصات:

• FB Approval: FM XP Cl.I,II Div.1 Gr.A-G zone 1 IIC T6 (Conduit seal not required), zone 1,2
• 2 Output: 4-20mA HART
• 2 Display, Operation: W/o LCD, push button on electronics
• I Housing: F31 Alu
• D Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
• 1W Sensor Range: 400bar/40MPa/6000psi gauge, 4000mH2O/13340ftH2O/160000inH2O overload: 600bar/60MPa/9000psi
• G Reference Accuracy: Standard
• F Calibration; Unit: Sensor range; psi
• RKJ Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
• A Membrane Material: 316L
• 1 Fill Fluid: Silicone oil

ویژگی‌ها:

• Accurate measurement of the process value even in the case of changing process temperature
• Process safety assured with small flush mounted process connections in hygienic applications
• For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511
• Modular concept for easy replacement of display or electronics
• Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
• Seamless and independent system integration (HART/PA/FF)

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Cerabar M_PMC51 PMP51 PMP55_Process pressure measurement)
(حجم فایل: 5.2 مگابایت)
