پارت نامبر: PMC51-AA12ID1FGFU7JA

وزن تقریبی حمل: 2 کیلوگرم

معرفی:

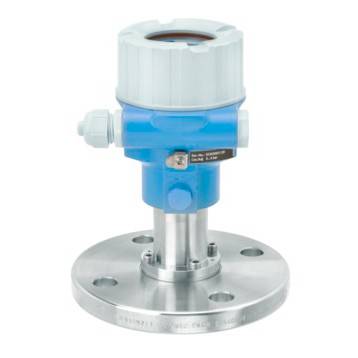

The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

مشخصات:

• AA Approval: Non-hazardous area
• 1 Output: 4-20mA
• 2 Display, Operation: W/o LCD, push button on electronics
• I Housing: F31 Alu
• D Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
• 1F Sensor Range: 400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O overload: 8bar/800k/120psi
• G Reference Accuracy: Standard
• F Calibration; Unit: Sensor range; psi
• U7J Process Connection: Thread ANSI MNPT1-1/2, 316L,flush mount
• A Seal: FKM Viton

ویژگی‌ها:

• Best fit for vacuum applications and applications with corrosive and abrasive media

• Process safety through membrane breakage detection

• Overload-resistant high purity ceramic sensor (99.9% Al2O3)

• Condensation resistant also for hygienic applications

• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

• Process pressure up to SIL2, certified to IEC 61508 and IEC 61511

• Modular concept for easy replacement of display or electronics

سایر پارت نامبرها:

برای سفارش سایر مدل‌ها و پارت‌نامبرها می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Technical Information_Cerabar M_PMC51 PMP51 PMP55_Process pressure measurement)
(حجم فایل: 5.2 مگابایت)
