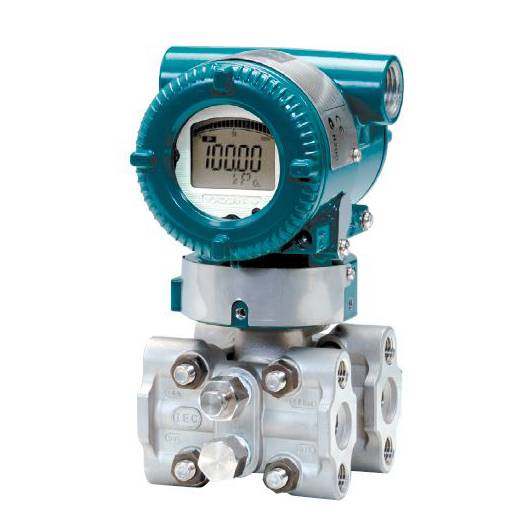

ترانسمیتر فشار گیج یوکوگاوا مدل EJA430E، بدون نشاندهنده
EJA430E-JAS4G-919NB/KU22
ترانسمیتر فشار گیج
4-20mA
پارت نامبر: EJA430E-JAS4G-919NB/KU22
وزن تقریبی حمل: 8 کیلوگرم
مشخصات:
|
Model |
Description |
|
EJA430E |
Gauge pressure transmitter |
|
Output signal |
|
|
-J |
4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)¹ |
|
Measurement span (capsule) |
|
|
A |
0.03 to 3.5 MPa (4.3 to 500 psi) |
|
Wetted parts material² |
|
|
S |
Cover flange and process connector Capsule Capsule gasket Vent/Drain plug ASTM CF-8M³ Hastelloy C-2764 (Diaphragm) Teflon-coated 316L SST 316 SST F316L SST, 316L SST (Others) |
|
Process connections |
|
|
4 |
with 1/2 NPT female process connector |
|
Bolts and nuts material |
|
|
G |
316L SST |
|
Installation |
|
|
-9* |
Horizontal piping and left side high pressure |
|
Amplifier housing |
|
|
1 |
Cast aluminum alloy |
|
Electrical connection |
|
|
9 |
M20 female, two electrical connections and a blind plug5 |
|
Integral indicator |
|
|
N* |
(None) |
|
Mounting bracket |
|
|
B* |
304 SST 2-inch pipe mounting, flat type (for horizontal piping) |
|
Optional Codes |
|
|
/KU22 |
Optional specification |
The " * " marks indicate the most typical selection for each specification.
(1) HART 5 or HART 7 is selectable. Specify upon ordering.
(2) Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive
process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken
diaphragm and the fill fluid can contaminate the user s process fluids.
Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or
above). Contact Yokogawa for detailed information of the wetted parts material.
(3) Cast version of 316 SST. Equivalent to SCS14A.
(4) Hastelloy C-276 or ASTM N10276.
(5) Material of a blind plug is aluminum alloy or 304 SST.
سایر پارت نامبرها:
برای سفارش سایر پارت‌نامبرها مطابق شماره‌گذاری بالا می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.
فایل‌های مرتبط:
دریافت دیتاشیت
(General Specifications: EJA430E Gauge Pressure Transmitter)
(حجم فایل: 2.1 مگابایت)
