Model

Description

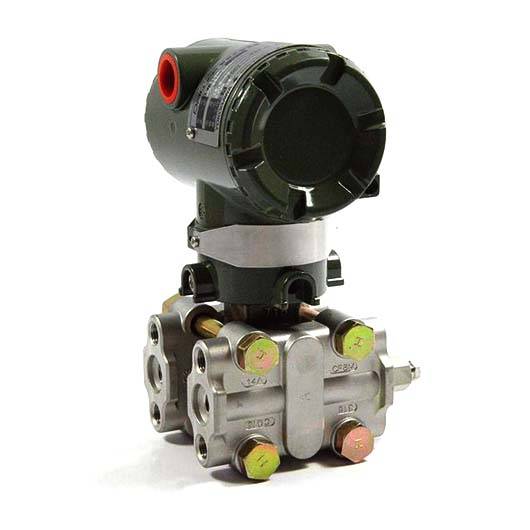

EJA120A

Differential pressure transmitter (for draft application)¹

Output Signal

-F

Digital communication (FOUNDATION Fieldbus protocol)

Measurement span (capsule)

E

0.1 to 1 kPa {10 to 100 mmH2O}

Wetted parts material

S

[Body]²              [Capsule]              [Vent plug]
SCS14A            SUS316L³             SUS316

Process connections

3

with 1/4 NPT female process connector

Bolts and nuts material

A

                           [Maximum working pressure]
SCM435                50 kPa {0.5 kgf/cm²}

Installation

-9

Horizontal impulse piping type, left side high pressure

Electrical connection

4

M20 female, two electrical connections without blind plug

Integral indicator

D

Digital Indicator

Mounting bracket

B

SUS304                 2-inch pipe mounting (flat type)
