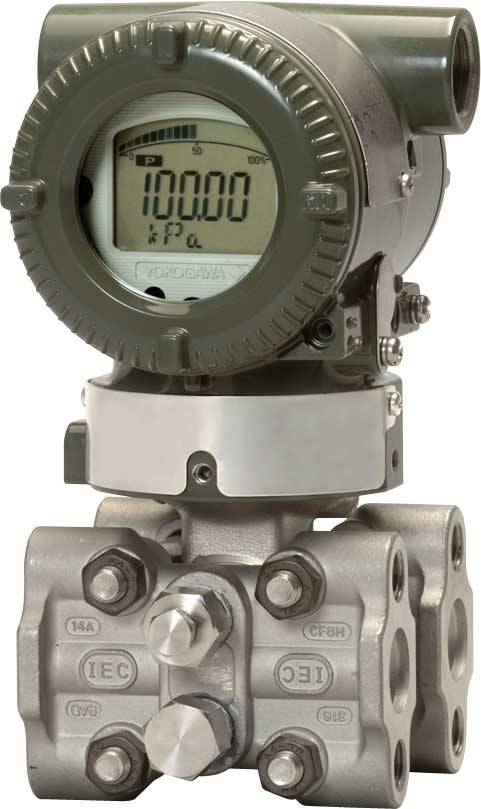

ترانسمیتر اختلاف فشار یوکوگاوا مدل EJA110E، با نشاندهنده
EJA110E-JMS4J-912DB
ترانسمیتر فشار تفاضلی (DP)
4-20mA
پارت نامبر: EJA110E-JMS4J-912DB
وزن تقریبی حمل: 6 کیلوگرم
مشخصات:
|
Model |
Description |
|
EJA110E |
Differential pressure transmitter |
|
Output signal |
|
|
-J |
4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)¹ |
|
Measurement span (capsule) |
|
|
M |
1 to 100 kPa (4 to 400 inH2O) |
|
Wetted parts material² |
|
|
S |
Cover flange and process connector Capsule Capsule gasket Vent/Drain plug |
|
Process connections |
|
|
4 |
with 1/2 NPT female process connector |
|
Bolts and nuts material |
|
|
J |
B7 carbon steel |
|
Installation |
|
|
-9* |
Horizontal piping and left side high pressure |
|
Amplifier housing |
|
|
1 |
Cast aluminum alloy |
|
Electrical connection |
|
|
2 |
1/2 NPT female, two electrical connections without blind plugs plug5 |
|
Integral indicator |
|
|
D |
Digital indicator5 |
|
Mounting bracket |
|
|
B* |
304 SST 2-inch pipe mounting, flat type (for horizontal piping) |
The " * " marks indicate the most typical selection for each specification.
(1) HART 5 or HART 7 is selectable. Specify upon ordering.
(2) Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive
process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken
diaphragm and the fill fluid can contaminate the user s process fluids.
Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or
above). Contact Yokogawa for detailed information of the wetted parts material.
(3) Cast version of 316 SST. Equivalent to SCS14A.
(4) Hastelloy C-276 or ASTM N10276.
(5) Not applicable for output signal code G.
سایر پارت نامبرها:
برای سفارش سایر پارت‌نامبرها مطابق شماره‌گذاری بالا می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.
فایل‌های مرتبط:
دریافت دیتاشیت
(General Specifications: EJA110E Differential Pressure Transmitter)
(حجم فایل: 2.6 مگابایت)
