پارت نامبر: 3302HA1S1V5AE3000RAE5M1

ساخت آمریکا

مشخصات:

Guided Wave Radar
Measurement Type Level and Interface
LCD Display
Polyurethane-covered Aluminum Enclosure
FM Explosion-proof Approval
Viton® Fluoroelastomer O-Ring Material
Threaded, 1.5" NPT, 316/316L SST Dual Cert. Process Connection
4-20 mA HART® Transmitter Output
1/2"-14 NPT Conduit Entry

ویژگی‌ها:

The Rosemount 3300 Guided Wave Radar provides reliable and cost effective level measurements in most liquid storage and monitoring applications. Advanced signal processing and sensitivity enables the 3300 to deliver both level and interface measurement data from the same transmitter. Two-wire connections ensure easy and inexpensive installation. ~Minimized maintenance with no moving parts, modular design and no re-calibration required ~Easy installation and commissioning through two-wire technology and user-friendly configuration ~High application flexibility with a wide range of process connections, probe styles , and accessories ~Easily integrated into existing HART and Modbus plant architecture

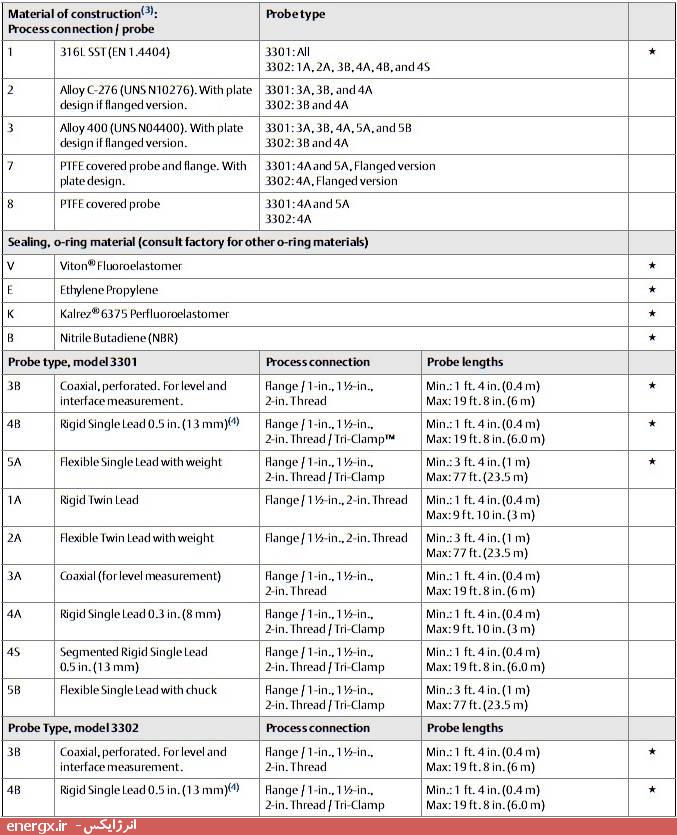

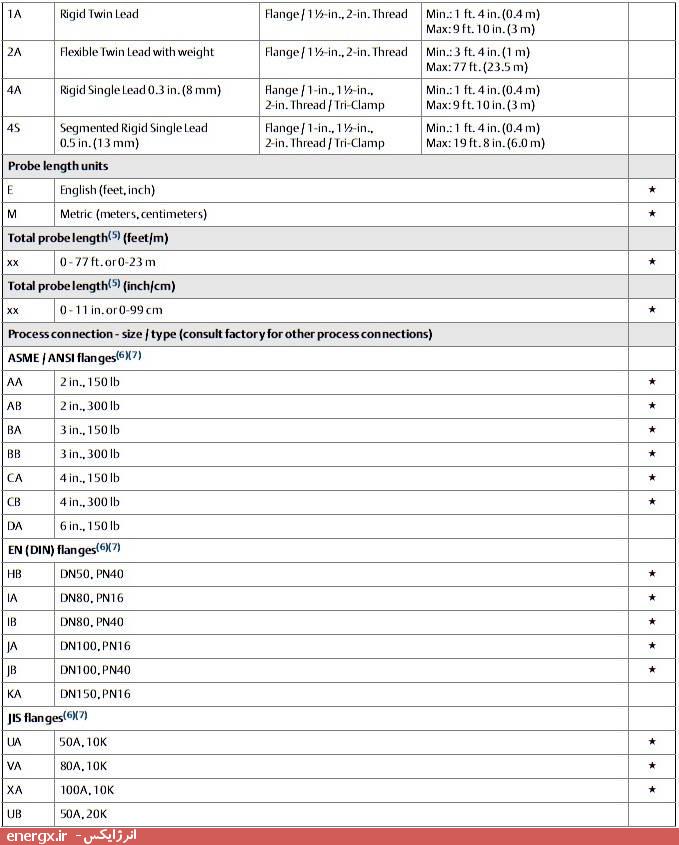

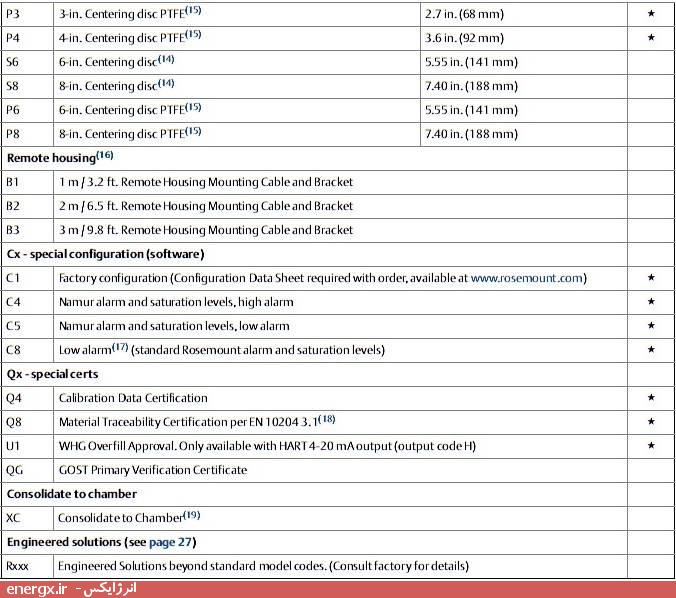

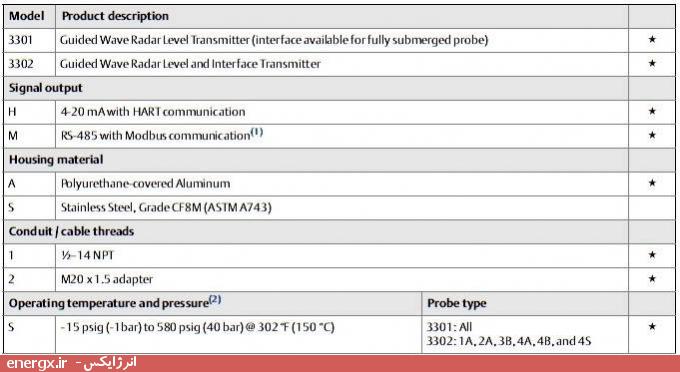

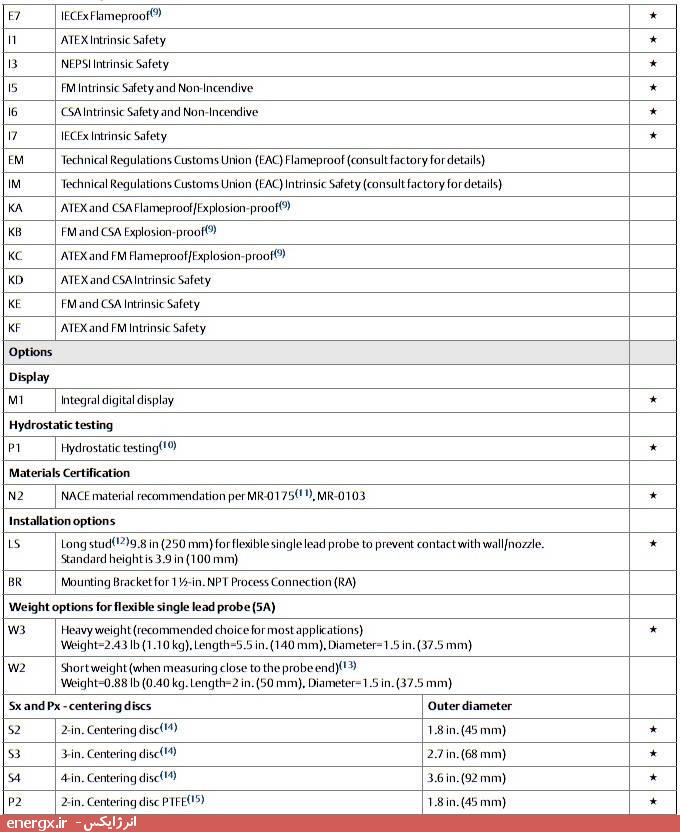

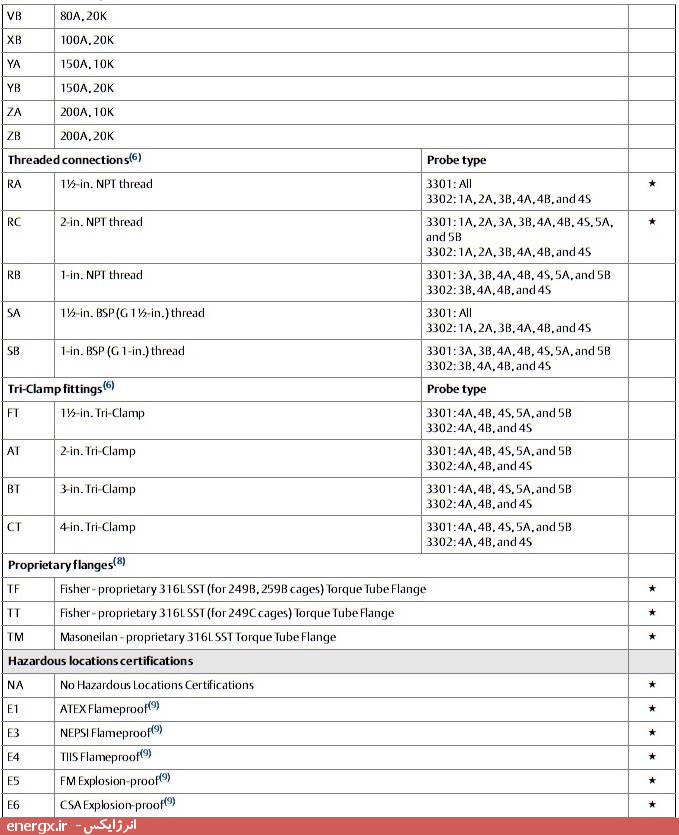

شیوه‌ی شماره‌گذاری سری 3300:

سایر پارت نامبرها:

برای سفارش سایر پارت‌نامبرها مطابق شماره‌گذاری بالا می‌توانید درخواست خود را به همراه کد مورد نظر از بخش استعلام پیگیری نمایید.

فایل‌های مرتبط:

دریافت دیتاشیت
(Rosemount 3300 Series Guided Wave Radar Level and Interface Transmitter)
